Magnetic resonance imaging

first MRI image

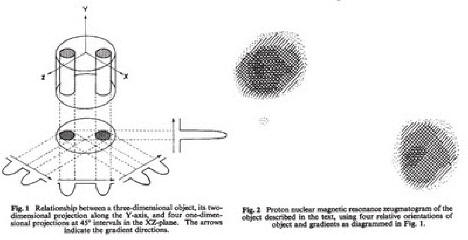

The first MRI image was published in Nature by Paul C. Lauterbur (1929–2007), on 16 March 1973. The image was of his test sample: a 4.2mm diameter test tube containing two water-filled capillary tubes. Lauterbur gave the name 'zeugmatography' to the new imaging technique (although the process was at that time more generally known as Nuclear Magnetic Resonance). [Khened, Kevles, EMRF, Thomas]

first 3D volumetric image

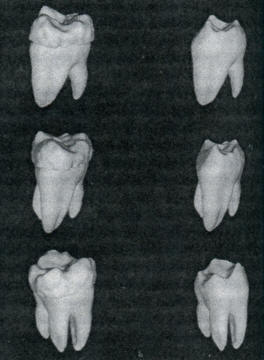

3D volume imaging is achieved by scanning conventional 2D slices of the subject in multiple planes, then assembling these in a 3D spatial presentation. [Khened] In 1995 a team at Caltech led by Pratik Ghosh used a 3D volumetric approach to revealing the structure of a molar removed from the 50-year-old skull of a young woman, in extraordinary detail. This image is reproduced from Kevles.

In 2010 scientists Jens Frahm and Axel Haase, at the Max Planck Institute for Biophysical Chemistry in Göttingen, succeeded in significantly reducing the MRI image acquisition time to just one fiftieth of a second. This has enabled the first recordings of MRI motion pictures. Movements of the eye and jaw as well as the bending knee and the beating heart have been filmed. [Max Planck Society]

In May 2016 an MRI sound motion picture was uploaded to the internet, showing the baritone Michael Volle singing 'Oh Du, mein holder Abendstern', from Wagner's opera Tannhäuser. The recording was made by the Medical Centre of the University of Freiburg, in Germany.



Ultrasound scanning

first ultrasound scan

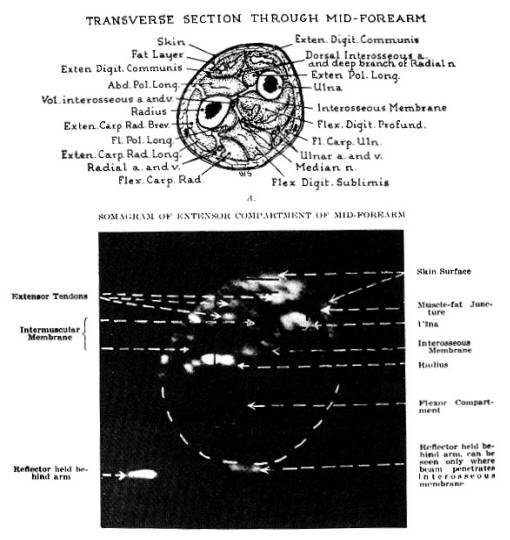

Howry's somagram image of an arm, 1952

Supported by Joseph H. Holmes (1902–1982), Douglass Howry (1920–1969) produced in 1951, with William Roderic Bliss and Gerald J. Posakony, both engineers, the 'Immersion tank ultrasound system', the first 2-dimensional B-mode (or PPI, plan position indication mode) linear compound scanner. Two-dimensional cross-sectional images were published in 1952 and 1953, which convincingly demonstrated that interpretable 2D images of internal organ structures and pathologies could be obtained with ultrasound. [History of Ultrasound in Obstetrics and Gynecology]

3D ultrasound was first developed by Olaf von Ramm and Stephen Smith at Duke University in 1987. [Patent, Duke BME]

Often these images are captured rapidly and animated to produce a '4D ultrasound'.
